Highly Effective, Chemical-Free Disinfection for Water Supply & Wastewater.
≥ 99.9%
254 nm (UV-C)
≥ 9,000 Hours
SUS304 / 316L

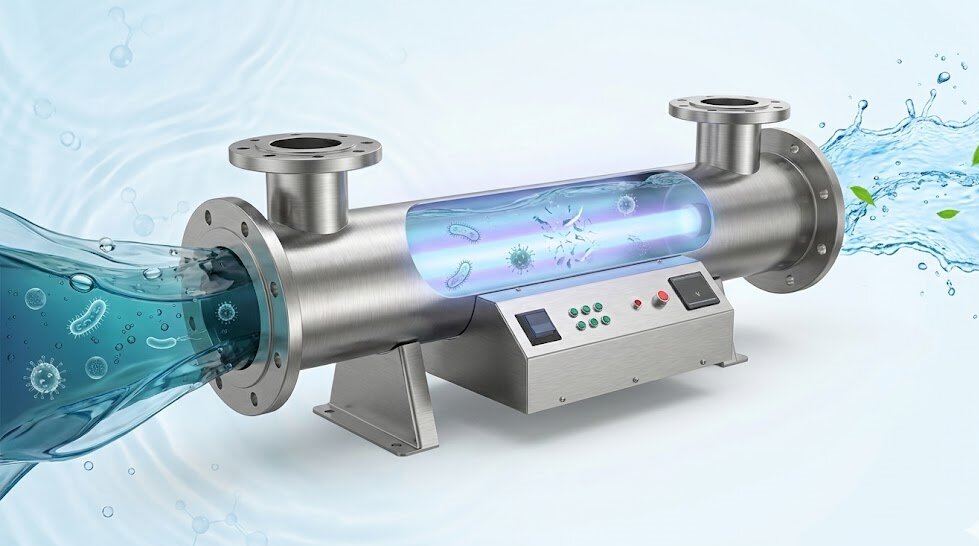

Untreated water enters the stainless steel reactor chamber, flowing around the quartz sleeves protecting the UV lamps.
High-intensity 254nm UV light penetrates pathogens, disrupting their DNA/RNA structure and instantly preventing reproduction.
Disinfected water exits the chamber, safe for consumption or discharge, with no chemical residues or altered taste.
Eliminates the need for chlorine or other harsh chemicals, preventing the formation of harmful disinfection byproducts (DBPs).
Effectively inactivates ≥99.9% of bacteria, viruses, and protozoa, including chlorine-resistant Cryptosporidium and Giardia.
High-efficiency electronic ballasts reduce power consumption. Maintenance is simple, requiring only periodic lamp replacement.
The physical process does not alter the taste, odor, pH, or chemical composition of the water.
Tailored to meet local voltage (110V/220V/380V) and frequency (50Hz/60Hz) standards worldwide.
| Product Model | PS-UV-W Series |
|---|---|
| Max Flow Rate | 1 - 500+ m³/h (Wide range of models) |
| Chamber Material | SUS304 / 316L Stainless Steel |
| UV Lamp Life | ≥ 9,000 Hours (High Output Low Pressure) |
| Working Pressure | ≤ 0.6 MPa (Standard) / High Pressure Custom |
| Applications | Drinking Water, Secondary Supply, Pools, Sewage Effluent |
Yes, PureShield ships UV water sterilizers globally. We use specialized shock-proof packaging to ensure quartz sleeves and UV lamps arrive safely anywhere in the world.
Absolutely. We manufacture units compatible with 110V/60Hz, 220V/50Hz, and other international standards to match your local power grid requirements.
The high-quality UV lamps typically last for 9,000 to 12,000 hours of operation (approx. 1 year continuous). We recommend annual replacement for optimal safety.
Yes, we offer full OEM/ODM services. We can customize chamber dimensions, port sizes (flange/thread), and control panel branding for your project.
